Model and Production Capacity of Ore Crusher
As a leading manufacturer of mining crushing equipment in China, offers a full line of crushers for primary crushing, secondary & fine crushing, and sand making. We have a complete range of models with well-defined capacity grades. Our machines work well with ores of different hardness, such as granite, iron ore and limestone, and are widely used in mines, aggregate plants and infrastructure projects.
1. Jaw Crushers (Core Primary Crushing Equipment)
Our flagship C6X series is specially built for primary crushing of hard rock. It features large feed opening and outstanding operational stability.
C6X110: Feed opening 1100×1400 mm, max feed size ≤950 mm, capacity 240–400 tons per hour. Ideal for primary crushing in small and medium-sized mines.
C6X145: Feed opening 1400×1800 mm, max feed size ≤1200 mm, capacity 370–650 tons per hour. A common choice for production lines with an output of 500 tons per hour.
C6X160: Feed opening 1200×1600 mm, max feed size ≤1020 mm, capacity 470–1100 tons per hour. The main primary crusher for large-scale mines.
2. Cone Crushers (Main Equipment for Secondary & Fine Crushing)
We provide three major types: HST single-cylinder cone crusher, HPT multi-cylinder cone crusher and CS spring cone crusher. All adopt laminated crushing technology to produce well-shaped end products.
HST Single-cylinder Hydraulic Cone Crusher
HST250: Capacity 180–350 tons per hour
HST315: Capacity 215–515 tons per hour
Easy to operate, perfect for medium-hard ores.

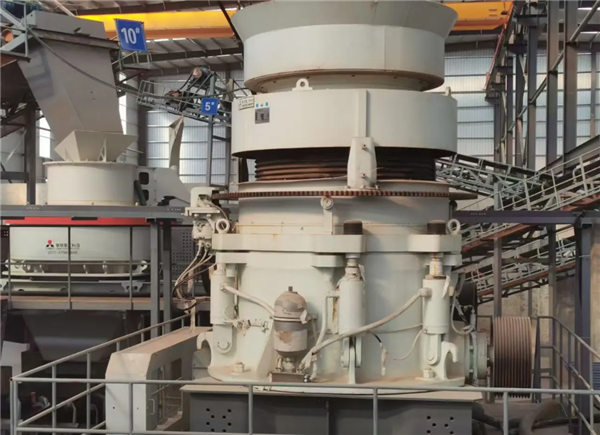

HPT Multi-cylinder Hydraulic Cone Crusher
HPT200: Capacity 150–280 tons per hour
HPT300: Capacity 200–380 tons per hour
Laminated crushing greatly reduces flaky particles. It is the top pick for crushing hard rock into medium and fine sizes.
CS Spring Cone Crusher
CS160: Capacity 27–90 tons per hour
CS315: Capacity 180–420 tons per hour
Simple structure and low running cost, suitable for small production lines.
3. Impact Crushers (Secondary Crushing & Rock Shaping)
The CI5X series is designed for medium and soft materials like limestone and coal gangue, delivering excellent particle shape.
CI5X1313: Max feed size ≤500 mm, capacity 250–350 tons per hour. Widely used as secondary crusher.
CI5X1520: Max feed size ≤700 mm, capacity 400–600 tons per hour. The key unit for large limestone production lines.
4. Vertical Shaft Impact Sand Makers (Sand Production & Aggregate Shaping)
Our standard and upgraded VSI series excel at sand making and aggregate shaping with high sand yield.
VSI7611: Capacity 60–120 tons per hour. Regular model for small sand production lines.
VSI1140: Capacity 180–250 tons per hour. Standard equipment for 200 tons per hour aggregate lines.
VSI6X1150: Capacity 300–580 tons per hour. Equipped with four-port impellers for longer service life of wear parts. First choice for large-scale sand making projects.
